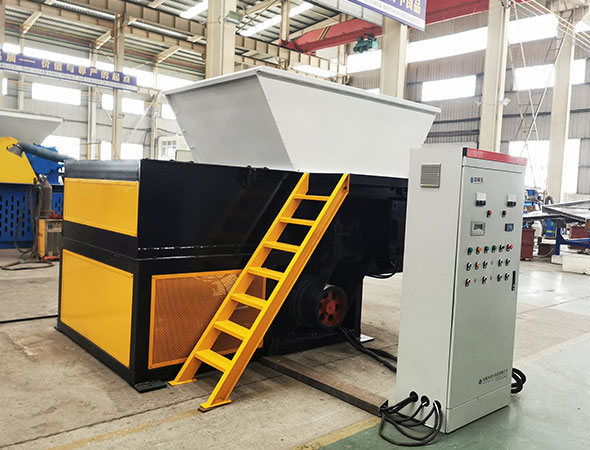

SS48150 Series Single Shredder Shaft
ss48150 series single shaft shredder can meet the waste recycling requirements of various industries. It is suitable for the recycling of plastics, paper, wood, fiber, rubber and domestic waste. There are a wide variety of recyclable materials.
- Application
- Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field
- Material
- Waste tire wood waste packaging paperCardboard and other paper waste copper coreAluminum core cable and composite material cable carpetLabor protection clothing and other chemical fiber productsIndustrial solid waste glass fiber products and other composite materialsDomestic waste, waste plastics and other solid wastes
ss48150 series single shaft shredder can meet the waste recycling requirements of various industries. It is suitable for the recycling of plastics, paper, wood, fiber, rubber and domestic waste. There are a wide variety of recyclable materials. The double single shaft shredder is suitable for recycling all kinds of large solid materials, difficult to handle materials, plastic containers, plastic barrels and plastic backing plates. The discharge size can be reduced to 20mm according to different requirements. And according to customer demand to provide a variety of feeding bucket. The equipment has the advantages of low speed, low noise and more energy saving.

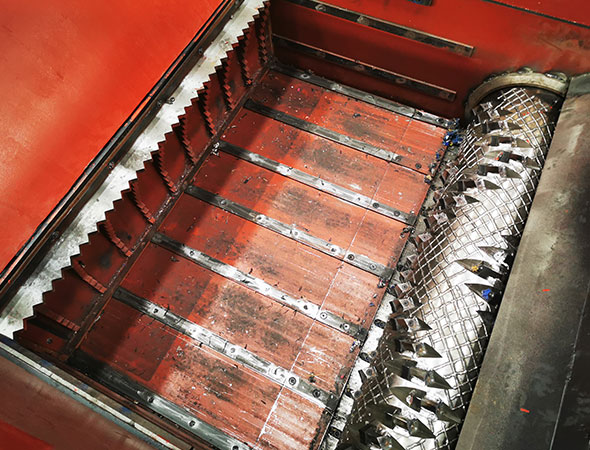

1.The blade is made of cold working die steel
The blade is made of cold working die steel, with good strength, high toughness and high cutting performance. The blade has four cutting edges, which can be rotated 90 ° after wear and continue to be used.
2.External bearing design
The external bearing design can prevent water and dust, and prolong the service time of the bearing. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsive force.
3.Dual drive option
Hard tooth surface reducer has high transmission efficiency, strong bearing capacity and low noise.
| Model | Power(kW) | Grinding chamber dimension(mm) | Total Weight(t) | Size(mm) |
| SS40100 | 45 | 1410×1000 | 8 | 2825x2004x1875 |
| SS40120 | 75 | 1410X1200 | 9 | 2825x2564x1875 |
| SS40150 | 90 | 1410X1500 | 9 | 2825x2964x1935 |
| SS48150 | 75 | 1650X1500 | 9 | 3135x2968x2105 |
| SS48200 | 75 | 1420X2000 | 9 | 3255x4415x2720 |
