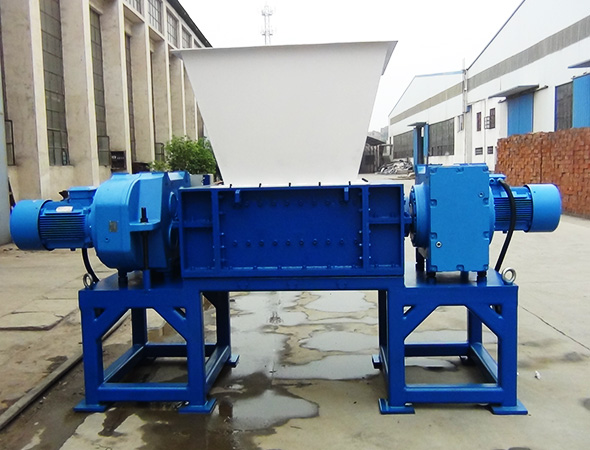

DS3280 Series Twin Shaft Shredder
DS3280 series is one of the most popular fine crushing equipment in China renewable technology.
- Application
- Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field
- Material
- Metal drum / Metal frame / Metal scrapPlastic drum / Plastic frame / Plastic palletWood scrap / wood palletWaste paper / cardboard cartonE-wasteAluminum scraps, Aluminum profileWaste rubber, waste tireHousehold wasteIndustrial waste
DS3280 series is one of the most popular fine crushing equipment in China renewable technology. According to the nature of waste materials and different process requirements, different types of equipment can be combined together, with strong applicability and high production efficiency, so as to meet the different process requirements of customers. DS32 series shredder adopts the symmetrical design structure of double knife rollers. Waste materials can naturally fall into the crushing area of the cutter group through the feeding bin, and each chip cutter roll can be fed automatically at an even speed without the need for a pushing device.
1.Integral cutter box
The crusher adopts a vertical structure, allowing for efficient material feed and discharge. This design also ensures a smaller footprint compared to horizontal crushers.
2.Imported alloy cutting tools
The hammer mill utilizes high-speed rotating hammers to provide powerful impact and shear forces, effectively breaking down scrap metal.

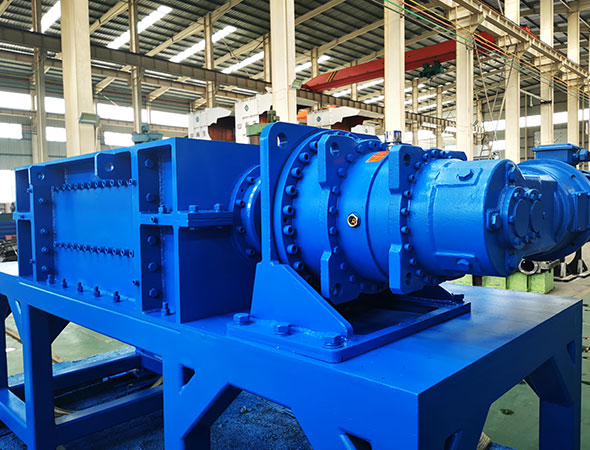

3.Dual drive option
Suitable for crushing a variety of metals including steel scrap, aluminum scrap, copper, and other alloys.
| Model | Power(kW) | Grinding chamber dimension(mm) | Total Weight(t) | Size(mm) |
| DS3280 | 22+22/4 | 844X844 | 5 | 3290X1300X2260 |
