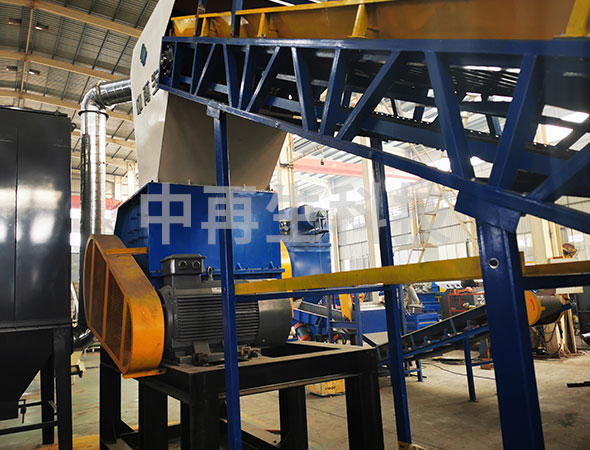

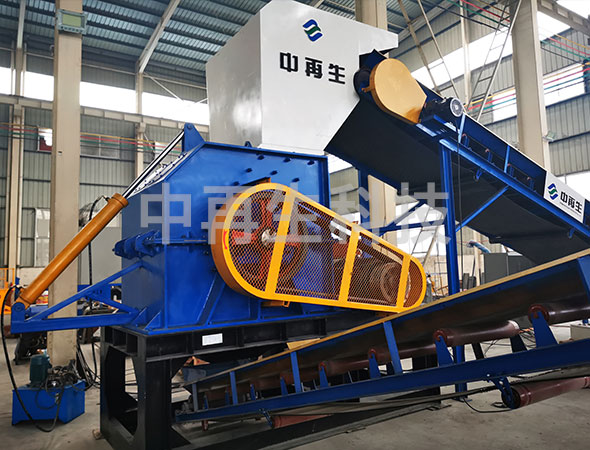

The main structural feature of sc1280 is that the fuselage adopts the reinforced structure of extra thick steel plate and diagonal bracing, which can ensure the overload requirements of the machine for crushing, and the direct stress part adopts the “tenon” structure, further improving the reliability of the machine. It is mainly used for processing light and thin metals such as raw aluminum and cooked aluminum. Driven by the high-speed and high torque motor, the hammer on the rotor of the main machine of sc1280 crusher blows the objects to be crushed into the chamber in turn, and tears the objects to be crushed into qualified crushed objects through the space formed between the lining plate and the hammer.

1.Adopt double or single axis low-speed rotation, and use the cutter head to cut, cut, tear and pull the materials.

Adopt double or single axis low-speed rotation, and use the cutter head to cut, cut, tear and pull the materials. The direct connected worm gear reduction motor is directly installed on the driving shaft of the crusher and transmitted to the driven shaft through gear speed change, so that the moving cutter of the driving shaft forms a relative motion with the stationary cutter head on the shell.

2.The spiral tooth cutter discs on the driving shaft are staggered

The spiral tooth cutter discs on the driving shaft are staggered, so that the materials will be squeezed, torn and sheared at the same time after entering, so that the materials can be broken.

3.High speed high torque motor

Driven by the high-speed high torque motor, the hammers on the rotor of the main engine strike the objects to be broken into the chamber in turn, and tear the objects to be broken into qualified ones through the space formed between the lining plate and the hammers.
