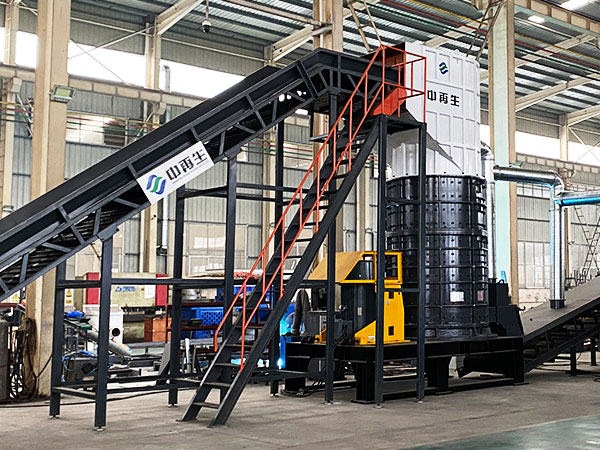

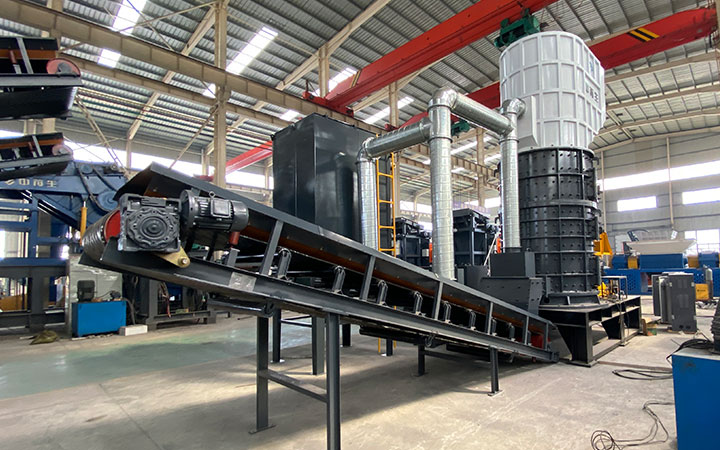

VSC4-1600 Vertical Hammer Crusher
The VSC4-1600 Vertical Hammer Crusher is a specialized piece of equipment used for the crushing and recycling of various types of scrap metals, including steel, aluminum, and other metal waste materials.
- Application
- Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field
- Material
- Radiator；Motor retor；UBC bale；Aluminium profiles；Engine block；Glass；Weee；Scrap steel
The VSC4-1600 Vertical Hammer Crusher operates by using a high-speed rotating hammer rotor to break down metal scrap. The materials are fed into the crushing chamber, where they are struck by hammers and subjected to high-speed impact forces. This reduces the size of the material into smaller particles, which can then be further processed or recycled.
1.Durability and Reliability
Constructed with high-strength materials, the crusher is built to withstand heavy-duty use in harsh industrial environments.
2.Vertical Design
The vertical configuration ensures a compact footprint, making it ideal for facilities with limited space.
3.High Crushing Efficiency
Equipped with powerful hammer blades, the crusher provides excellent throughput and ensures that metal materials are reduced to smaller, more manageable sizes.
4.Energy-Saving
The design optimizes energy consumption, reducing operating costs and increasing the machine’s efficiency.
| Model | Power(Kw) | Feeding hopper size(mm) | Cylinder diameter(mm) | Dimension(mm) |
| VSC4-1000 | 75-110 | 1000X1000 | 1000 | 3530X1370X3900 |
| VSC4-1200 | 110-200 | 1100X1200 | 1200 | 3300X4300X5100 |
| VSC4-1600 | 250-315 | 1100X1600 | 1600 | 4400X2300X6000 |
